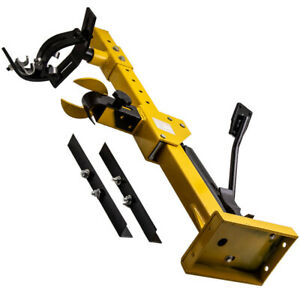

Auto Parts – 1 Ton Coil Spring Compressor Station Auto Strut 2200 lbs Piston Stroke 320 mm

WARNING
DO NOT use brake fluid or any fluid other than hydraulic jack oil. which will cause serious damage and invalidate warranty.

KEEP CHILDREN AWAY FROM THE UNIT.

Technical Data:
Load Capacity: 1000KG/1T (2200 lbs)
Cylinder Piston Stroke: 320 mm (12.6″)
Applicable Spring Diameter: 70~200 mm (2.8″~7.9″)
Piston Diameter: 28 mm (1.1″)
Min. Support Bar Shaft Open: 65* 51 mm (2.6″* 2″)
Max. Support Bar Shaft Open: 60* 200 mm (2.4″* 7.9″)
Jack Lifting Height: 495~820 mm (19.5″* 32.3″)
Height Adjustment: Adjustable with 7 holes on the column

Package Includes:
1 X 1 Ton Auto Strut Coil Spring Compressor as pictures show

Safety Instructions:

• Coil spring compressor should be securely fixed on the flat ground before use.
• Ensure yoke locating pins are properly positioned and safety clips are attached correctly.
• When applying compression to the spring. always stand beside the unit.
• When not in use. clean and store the spring compressor in a safe and dry place.
• Maintain the spring compressor in good condition. Use genuine parts only to replace or repair damaged parts.
• Maintenance
• Before each use. check the compressor to see whether it’s in good condition. If in any doubt DO NOT use the unit.
• Refilling the hydraulic system is rarely necessary. However the oil level should be checked.
• To check oil level. ensure the ram is fully lowered. remove filler plug and check if the level is within 10 mm of filler hole. Add hydraulic oil if necessary.

Features:

1. Quick and safe compressor
2. Foot pedal operated with quick release
3. Fits most vehicle models and sizes
4. Ram bracket can be slid for height adjustment
5. Good materials. reliable quality
6. Huge largest compressing force
