Auto Parts – 3 Row Radiator&Shrou,d Fan&Relay for Chevy 1970-1981 Camaro/1978-19,87 Monte Carlo

• 100% Brand new and never been used.
• This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight. and high-heat transferring aluminum features a tube and fin design that. dramatically increases surface area that enables the heat to dissipate more efficiently.
• This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly. it has a much higher capacity for coolant than stock ones. which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
• Professional Installation is Highly Recommended
• No Instruction Included

• RADIATOR:
• Material: Full Aluminum
• Row/Core: 3 Row/Core
• Core Dimensions: 17″ H x 26-1/4″ W x 2-1/4″ Thick
• Overall Dimensions: 18-1/4″ H x 31-5/8″ W x 2-1/2″ Tank Thickness
• Upper Inlet 1-1/2″ located on the Driver side
• Lower Outlet 1-1/2″ located on the Passenger side
• Trans Cooler Included -1/2″ 20 STRAIGHT THREAD G1/4-
• Mount Type: Saddle

• FANS:
• Aids to Cool the Entire Engine Bay. including Radiator. A/C System. Intercooler. Oil System. and Transmission
• Performance JDM Spec. Racing Design
• OE Fitment or Replacement. Push or Pull Type
• Maximum Fan CFM: 1730 cfm
• Fan Diameter (in): 10.050??/span>
• Thickness (in): 2.500??/span>
• Number of Blades: 10 blades
• Maximum Fan RPM: 2.250 rpma
• Blade Material: Plastic
• Amp Draw: 12.70 amps
• Includes the Mounting Tabs for an Easy Zip Tie Installation

• SHROUD AND FANS
• The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management. allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

• THERMOSTAT RELAY KIT
• Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180’F turn-on temperature. 165’F turn-off temperature.3/8″ NPT thread-in brass probe w/ 1/2″ NPT adapter included.Probe typically threads into radiator. water outlet or manifold.

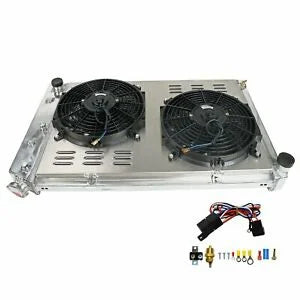

Package includes:

• 1X 3-Row Aluminum Radiator (Includes Radiator Cap)
• 1X Aluminum Shroud
• 2X 12″ Fans (Includes mounting kits)
• 1X Thermostat Relay Kit
• Just as pictures show

Fitment:

• 70-81 Chevy Camaro/75-79 Nova/68-73 Chevelle El Camino
• 1980 Buick Century 4.3L 4.9L 5.0L
• 1979-1980 Buick Regal 3.8L 4.9L
• 1979 Buick Estate Wagon 5.7L
• 1979-1980 Chevrolet C10 / C20 /C30 /G10 4.1L 4.8L 5.7L
• 1979 Chevrolet C10 Suburban / C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L
• 1979 Chevrolet Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L
• 1980 Chevrolet Impala / Monte Carlo /P30 5.0L 5.7L
• 1979-1980 Chevrolet K10/K20 /K30 4.1L 4.8L 5.7L
• 1979 Chevrolet K10 Suburban / K20 Suburban 5.0L 5.7L
• 1979-1980 Chevrolet Malibu 3.3L 3.8L 4.4L 5.0L 5.7L
• 1980 GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban
• 1980 Oldsmobile Cutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L
• 1980 Pontiac Catalina / Grand LeMans/ LeMans
• For the year and models. please check the compatibility
