Auto Parts – AN8 -8AN Fitting Swivel Stainless Steel Braided Oil Fuel Hose Line Bundle 16FT Red

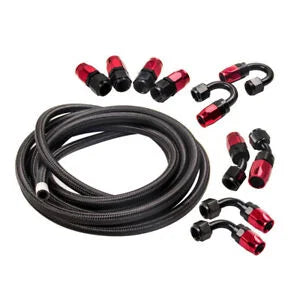

Package includes:

• 4 PCS x AN-8 Straight Reusable Swivel Hose End
• 2 PCS x AN-8 45?? Reusable Swivel Hose End
• 2 PCS x AN-8 90?? Reusable Swivel Hose End
• 2 PCS x AN-8 180?? Reusable Swivel Hose End
• 5M/16.4 Feet x AN-8 Nylon Braided Hose
  (You will get exactly the same as picture shows)

Specification:

• Fitting Material: Anodize T-6061 Aluminum Alloy
• Fitting Size: AN -8 / JIC 8 – 3/4 x 16 UNF
• Braided Hose: I.D. = 11.1mm approx – O.D. = 17.2mm approx
• Material: Nylon Steel
• Working Pressure: 7 MPA
• Bursting Pressure : 35 MPA
• Minimum bending radius: 88.9mm
• Temperature range: 40 to 160
• Color: Black+Red
• Warranty: 2 Year
• 100% Brand New

Features:

• Made of durable CPE synthetic rubber tube bonded and secured by Nylon and 308 Stainless Steel outer braid
• Working Pressure: 300PSI
• Burst Pressure: 1000PSI

• Professional Installation is Highly Recommended
• Installation Instruction is NOT Included
• If you have any question.please feel free to contact us
