Auto Parts – Diesel Air Heater 12V 5000W-8000W w/LCD Switch All in One for Auto Bus Motorhomes

Notice:

Pick up service is not available.

Application for:

motorhomes. campervans. caravans (also known as travel trailers and camper trailers). fifth-wheel trailers. popup campers and truck campers. Small Truck. Big Truck. Light Truck. Heavy Truck. Pickup. Van.Bus.Car.SUV. Boat. Forklift. Electric Tricycle. Engineering Vehicle. Yacht

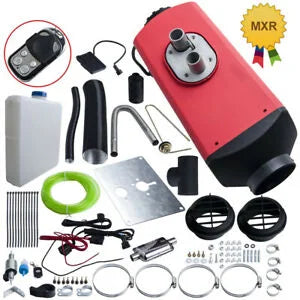

Packag included:

1 x Parking Heater

1 x LCD Switch

1 x Remote Control

1 x Exhaust Silencer ( for car use only)

1 x Diesel Tank (10L)

1 x Main wiring Bundle

1 x T-Piece

1 x Oil pump

1 x Oil pump connection wire

1 x Filter

1 x Oil pipe

1 x Inlet air pipe (aluminium alloy. 50cm length)

1 x Exhaust pipe (stainless steel. 60cm length)

1 x Gasket

1 x Reducing tee

2 x Terminal

1 x Oil pump clip

1 x Inlet air pipe clip

1 x Exhaust pipe clip

2 x Inlet air pipe fixing clip

2 x Exhaust pipe fixing clip

6 x Oil pipe joint

2 x Oil pipe clip

4 x Washer

4 x Nut

4 x Self tapping screw

1 x Nylon cable ties

1 x Oil suction pipe

1 x Air inlet hood

1 x Metering oil pump

Specifications:

Heater Power: 5KW-8KW
Fuel Gasoline: Diesel
Car Air Conditioning Type: Heating
Rated Voltage:12V
Fuel Consumption(L/h):0.64
Working Temperature of the Heater:-40 ~+50
Working Temperature of the Oil pump:-40 ~+40
Item Size:39*14.5*14.5cm
Heater Color: Black
Material: Metal & Plastic

Features:

-Smooth. automatic room temperature control with temperature pre-set facility.
-Low fuel and power consumption. suitable for longer periods of operation.
-More comfort through wide control range. quiet night-time operation.
-Fully electronic microprocessor control.
-Continuous monitoring.
-Diagnostic system.
-Power stage to cut heating times.
-Low noise operation. most of the noise get reduced when it works.
-Low maintenance. easy to service.
-Can be operated whilst on the move.
-Fuel supplied from the vehicle’s own tank (diesel only).
-Small and compact design for easy and space-saving installation within the interior or even under the floor
-Independent heating device: Blow out warm air independently without causing wear and tear or carbon deposits in the engine. which can extend engine life by 30%.
-Keep constant temperature: the intelligent overheating sensor can prevent the heater from running dry.
-Can eliminate the window frost.
-Environmentally product. low emissions. low fuel consumption; heater exhaust emissions to meet euro IV engine emissions requirements.
-Can dismantle to a new car when replace vehicle.
-Volatile technology. by the ceramic ignition plug will fuel heating evaporated into gas. fast ignition. full combustion.

Important Installation

1. The fixed backboard should be sealed and separated from vechicle sheet metal during installtion to avoid physical injury to the driver when the combustion gas flows in the driving cab from the gap.

2. The exhaust pipe length shall be 30cm at least.

3. The exhaust gas outlet sall be firmly placed in the empty space.

4. The exhaust pipe outlet shall not look at the driving direction.

(More installation details included in the instruction manual.)

Notice:

*Due to the manual measurement and different measurement methods. please allow 1-3cm deviation.

*Professional installation is recommended.

*.
