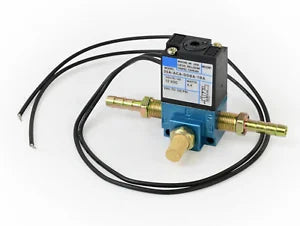

Auto Parts – MAC 3 Port 5.4W Electronic Boost Control Solenoid Valve Brass Fittings Connector

The MAC (Automotive Grade) 3 port valve is a true solenoid. It is rated to hold boost pressures far in excess of levels that any petrol turbocharged engine is ever likely to see.

This extremely compact Solenoid only has a 2 wire installation and has 3 port connections .These are used to compliment many different aftermarket electronic boost controllers and these are also the tuners favorite to use in conjunction with a standard or aftermarket Stand Alone ECU’s.

Specifications

TYPE: 3 port solenoid – this is the most common method for controlling boost.

5.4W. 25.4ohm coil

Simple 2 wire connection

Full vacuum to 120psi capable

Pulse width modulation (PWM) driven

Numbered port connections (1 to 3)

3 x high quality brass fittings included (2 x barbed. 1 x sintered air vent/muffler – sintered is used to avoid having to run another line to your air filter).

Suitable for most turbo and supercharged applications

Compatible / used by most aftermarket ECU application
