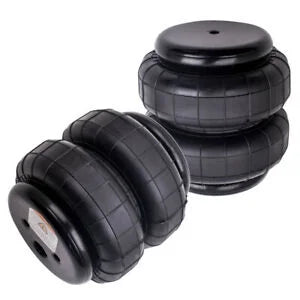

Auto Parts – Pack Of 2 Air Ride Air Suspension Bag 2500lbs for Chevrolet Silverado for Ford

Standard 2500 lb Air Spring Bag Part 1/2″npt Single Port Air Shock Suspension

Fit for:

Universal Air Suspension Bags for Ford F150/F250. for GMC Sierra. for Chevrolet Silverado. for Dodge Ram 1500 2500 3500. etc

(Fits for most brand trucks)

Item Specifications:

Min height: 65mm

Max height: 175mm

Working stroke: 110mm

Loading cap. at 3.0bar:1.48KN

Loading cap. at 7.0bar:6.23KN

Single air port size: 1/2NPT

Install hole size:3/8-16UNC

Top plate diameter:113mm

Air bag body diameter:145mm

Air spring bag capacity: 2500LBS

Max pressure: 2.6Mpa

Condition: 100% Brand New

Quantity: 2 pieces in one set. (for rear / front left or right)

Warranty: 2 Years Warranty for any manufacturing defect.

Features:

-Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

-Built to strict quality control standards.

-Designed for Comfort Suspension.

-Bring better handling and ride comfort.

Notice

– These air suspension bags are aftermarket ones. They will replace the original air spring bags.

– Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help
