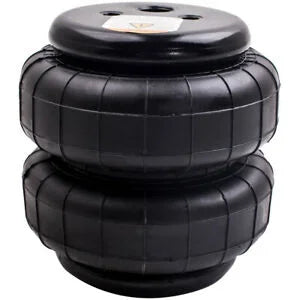

Auto Parts – Forward/Back L/R Air Suspension Bellows Bag Standard 2500 lb 1/2″npt Single Port

Standard 2500 lb Air Spring Bag Part 1/2″npt Single Port Air Shock Suspension

Fit for:

Universal Air Suspension Bags for Ford F150/F250. for GMC Sierra. for Chevrolet Silverado. for Dodge Ram 1500 2500 3500. etc

(Fits for most brand trucks)

Condition: 100% Brand New

Quantity: 1 piece (for rear / front left or right)

Warranty: 2 Years Warranty for any manufacturing defect.

Min Height: 65mm

Max Height: 175mm

Working Stroke: 110mm

Loading Cap. at 3.0bar: 1.48KN

Loading Cap. at 7.0bar: 6.23KN

Single Air Port Size: 1/2NPT

Install Hole Size: 3/8-16UNC

Top Plate Diameter: 113mm

Air Spring Body Diameter: 145mm

Air spring bag capacity: 2500LBS

Features:

1. Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

2. Built to strict quality control standards.

3. Designed for Comfort Suspension.

4. Bring better handling and ride comfort.

Notice

– These air suspension bags are aftermarket ones. They will replace the original air spring bags.

– Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help
