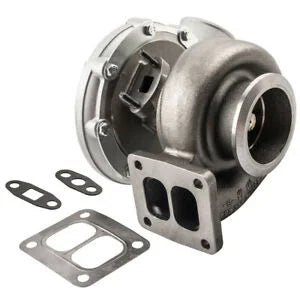

Auto Parts – S300SX3 Turbo Turbocharger 66mm T4 Twin Scroll 0.91 A/R 320-800hp V-Band

Universal S300SX3 Turbocharger.Up to 320-800hp

Specifics
Turbine Inducer: 80mm/3.14in
Turbine Exducer: 73mm/2.9in
Turbine Trim: 85
Turbine A/R: 0.91
Turbine Wheel: 10 blades
Turbine Inlet Flange Type: T4
Turbine Outlet Flange Type: V-Band

Compressor Inducer Diameter: 66mm/2.6in
Compressor Exducer: 96mm/3.8in
Compressor Trim: 47
Compressor Wheel: 7+7 blades
Scroll Type: Twin
Bearings Type: Floating bearing

Replacement & Part Number
177272. 177275. 177281

Note
2 year warranty with any manufacture defect
You will get exactly as picture show
Any problem please contact with us
Professional Installation is Highly Recommended Installation Instruction is not Included
